Overview
The MIPS ARC® HS46FS, HS46FSx4, HS47DFS, HS47DFSx4, HS48FS, and HS48FSx4 functional safety processors (ARC HS4xFS) simplify development of high-performance safety-critical applications and accelerate ISO 26262 safety and ISO/SAE 21434 cybersecurity certification of automotive system-on-chips (SoCs). The ASIL D compliant processors feature a pre-verified dual-core lockstep implementation including a self-checking safety monitor. There is also an option to run the cores in performance mode for ASIL B or non-automotive applications requiring higher performance based on the same design.

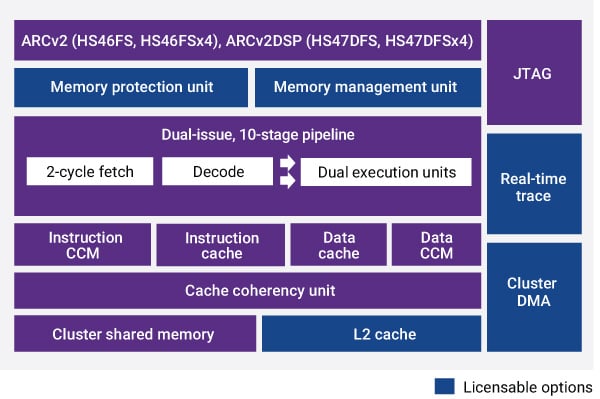

Within the processors the interrupt controller, watchdog timer, and options such as cluster DMA and FPU are tightly coupled to the core and are instantiated within the main and shadow core for full redundancy.
The ARC HS Functional Safety processors are supported with comprehensive safety documentation including FMEDA reports and the ARC MetaWare Toolkit for Safety with ASIL D certified compiler to generate ISO 26262 compliant code.
Highlights & Key Features
- Dual-core lockstep safety processor supports ISO 26262 automotive safety standards
- Certified for ISO 262626 safety and ISO/SAE 21434 cybersecurity compliance
- Single solution for Automotive Safety Integrity Level B, C and D (ASIL B, C, D); Supports both ASIL D lockstep operation or ASIL B, C single core operation
- Includes hardware safety features: ECC, integrated user-programmable windowed watchdog timer, and lockstep safety monitor
- Dual-issue, 32-bit processor for high-performance applications
- Support for DSP instructions
- MetaWare Toolkit for Safety with ASIL D certified compiler
- Extensive safety documentation eases SoC certification process
Licensable Options
- Memory Management Unit (MMU)
- L2 Cache
- Memory Protection
- Debug
- Cluster DMA
Product Details
Products
| ARC HS46FS with ASIL B / ASIL D support, including lock-step for functional safety applications | STARs | Subscribe |
| ARC HS46FSx4 quad-core with ASIL B / ASIL D support, including lock-step for functional safety applications | STARs | Subscribe |
| ARC HS47DFS, with DSP extensions, and ASIL B / ASIL D support, including lock-step for functional safety applications | STARs | Subscribe |
| ARC HS47DFSx4 quad-core, w/ DSP extensions, ASIL B / ASIL D support, incl. lock-step for functional safety applications | STARs | Subscribe |
| ARC HS48FS, host processor, with ASIL B / ASIL D support, including lock-step for functional safety applications | STARs | Subscribe |
| ARC HS48FSx4 quad-core, host processor , ASIL B / ASIL D support, incl. lock-step for functional safety applications | STARs | Subscribe |
Downloads & Documentation
| Description | ARC HS46FS with ASIL B / ASIL D support, including lock-step for functional safety applications |
| Name | dwc_arc_hs46fs_core |
| Version | 4.10a |
| ECCN | 3E991/NLR |
| STARs | Open and/or Closed STARs |
| myDesignWare | Subscribe for Notifications |
| Product Type | DesignWare Cores |
| Documentation |
Databook ARC HS APEX Databook (4.10a) ( PDF )
ARC HS4xFS Series Databook (4.10a) ( PDF )
ARC HS4xFS Series Databook (Beta) ( PDF )
ARC Trace Databook (4.10a) ( PDF )
ARC Trace Databook (Beta) ( PDF )
HAPS Reference Design Flow Databook (4.10a) ( PDF )
Datasheet ARC HS Functional Safety Processors Datasheet ( PDF )
Implementation Guide ARC HS Integration Guide (4.10a) ( PDF )
ARC HS Integration Guide (Beta) ( PDF )
Reference Manual ARCv2 FPGA Synthesis Flow (4.10a) ( PDF )
ARCv2 ISA Programmer's Reference Manual for ARC HS3x and 4x Processors (Public Edition) ( PDF )
ARCv2 ISA Programmer's Reference Manual for ARC HS4xFS Processors (4.10a) ( PDF )
User Guide ARC MIPS ASIC Reference Design Flow User's Guide (4.10a) ( PDF )
|
| Toolsets | Qualified Toolsets |
| Download | dwc_arc_hs46fs_core |
| Product Code | E584-0 |
