ARC HS L2 Cache Memory Option

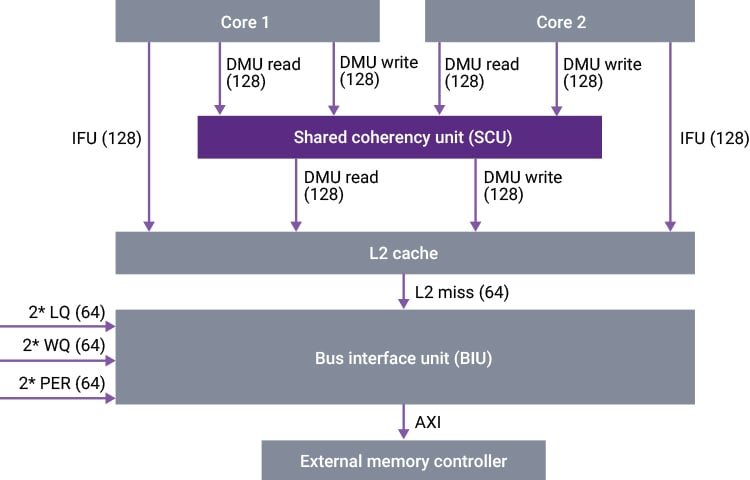

The ARC HS38 and HS48 have support for up to 8 MB of L2 cache and it is available as a separately licensed option for the HS36, HS46 and HS47D. The L2 cache is user configurable from 128KB to 8 MB and can be used with a single-core or multi-core implementation with all CPUs in a multicore cluster sharing the same L2 cache. This cache is designed to run at the same clock frequency as the CPU core and can be configured for 4, 8, 16 or 32 memory banks. The coherent L1 caches will work in concert with the L2 cache and the L2 cache is tightly connected to the core(s) through a proprietary low latency bus. The L2 cache interface to the AXI subsystem is configurable to either 64 or 128 bits wide. These features ensure that the L2 cache can support the bandwidth needed by the CPUs while avoiding AXI bus traffic on the datapaths between the CPU cores and the L2 cache.

The L2 cache connects seamlessly to HS cores and provides up to 16 ports to connect to the cores and hardware accelerators in the cluster. Requests from ports are independently executed unless there is a data dependency. The L2 is configurable and can be implemented with high-density SRAM to lower power consumption. The replacement algorithm is LRU with configurable tag banks to enable the best performance and efficient implementation. The L2 cache has user configurable support for parity, ECC and optional BIST hardware. L2 cache sees two types of errors: ECC or parity errors and memory bus errors. The L2 cache support several clock gating and power down modes that they user can use to control power consumption
